工業母板

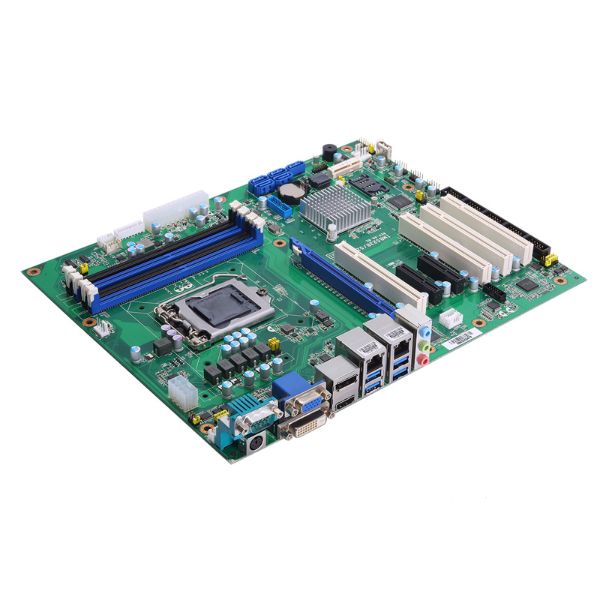

TOP-AIQ370-K62 ATX母板

ATX母板
● LGA1151 socket 9th/8th gen Intel® Core? i7/i5/i3, Pentium® & Celeron® 處理器(Coffee Lake Refresh)
● 4 288-pin DDR4-2666/2400 DIMM 最大支持128GB內存
● 支持DisplayPort, DVI-D, HDMI, VGA, 支持三顯
● 5 SATA-600 with RAID 0/1/5/10
● 1 PCI Express Mini Card 插槽
● 2 USB 3.1 Gen2；4 USB 3.1 Gen1
● 支持TPM 2.0 (可選)

產品描述技術參數 應用方案相關產品

CPU	LGA1151 socket 9th/8th gen Intel® Core? i7/i5/i3, Pentium® & Celeron® 處理器 (最大支持95W)
系統內存	4 x 288-pin DDR4-2666/2400 DIMM, 最大支持128GB
芯片組	Intel® Q370
BIOS	AMI BIOS
看門狗定時器	1~255 秒可編程設置
擴展接口	1 x PCIe x16 slot 2 x PCIe x4 slot 4 x PCI slot
擴展接口	1 x PCIe Mini Card slot with PCIe x1 & USB 2.0 & SATA
鋰電池	Lithium 3 V/ 220 mAH
尺寸	305 x 244 mm ATX母板
板厚	1.6 mm
工作溫度	0°C to +60°C (+32°F to +140°F)
相對濕度	10% to 95% 相對濕度，無冷凝
SATA	5 x SATA-600 with RAID 0/1/5/10
硬件監控	檢測 CPU/系統溫度, 電壓，支持智能風扇控制
以太網	1 x 10/100/1000 Mbps 以太網 Intel® i219-LM; 支持Wake-on-LAN, PXE Boot ROM, iAMT
	1 x 10/100/1000 Mbps 以太網 Intel® i211-AT;
	支持 Wake-on-LAN, PXE Boot ROM
音頻	高清音頻解碼 MIC-in/Line-in/Line-out，Realtek ALC662
USB	2 x USB 3.1 Gen2 (rear IO)
	4 x USB 3.1 Gen1 (rear IO, internal box header)
	7 x USB 2.0 (pin header, 180D type A)
串口	4 x RS-232 (Internal box header)
串口	2 x RS-232/422/485 (COM 1: rear I/O; COM 2: internal box header)
PS/2 Combo 接口	1 x PS/2 keyboard and mouse
TPM	TPM 2.0 (可選)
SMBus	Yes
Digital I/O	8-位可編程
圖形控制器	Intel® HD Graphic
顯存容量	共享系統內存
顯示接口	1 x VGA
	1 x DVI-D
	1 x HDMI
	1 x DisplayPort++

ATX母板

Ordering information
Standard
IMB523RVDHGGA-Q370 (P/N: E38F523103)	ATX motherboard with LGA1151 socket 9th/8th gen Intel® Core? i7/i5/i3, Pentium®
	& Celeron® processor, Intel® Q370, USB 3.1 Gen2, SATA 3.0, 2 GbE LANs, VGA,
	DisplayPort++, DVI-D and HDMI
Optional
5938A808010E	2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm
5938A808020E	2 x USB 2.0 cable with bracket, P=2.54 mm, L=400 mm
5948C122800E	2 x USB 3.1 Gen1 cable with bracket, L=400 mm
59380000290E	PS/2 keyboard & mouse cable with bracket
593826A0000E	SATA signal cable/red, L=500 mm
59384500100E	Audio cable with bracket, P=2.0 mm, L=450 mm
59380402010E	1 x COM port cable with bracket, P=2.54 mm, L=300 mm
59380703000E	2 x COM port cable with bracket, P=2.54 mm, L=300 mm
83935151000E	TPM 2.0 module (AX93515)
5076E510000E	CPU heatsink for 1U chassis (AX61135TM)
50761222000E	CPU cooler for 2U, 4U, and wall mount chassis

無標題文檔

Processor List
CPU	Speed	Cache	Cores	TDP
Intel® Core? i9-9900K Processor	3.6 GHz	16 MB	8	95 W
Intel® Core? i7-9700TE Processor	1.8 GHz	12 MB	8	35 W
Intel® Core? i7-8700K Processor	3.7 GHz	12 MB	6	95 W
Intel® Core? i7-8700 Processor	3.2 GHz	12 MB	6	65 W
Intel® Core? i7-8700T Processor	2.4 GHz	12 MB	6	65 W
Intel® Core? i5-9500E Processor	3.0 GHz	9 MB	6	65 W
Intel® Core? i5-9500TE Processor	2.2 GHz	9 MB	6	35 W
Intel® Core? i5-9400 Processor	2.9 GHz	9 MB	6	65 W
Intel® Core? i5-8400 Processor	2.8 GHz	9 MB	6	65 W
Intel® Core? i5-8500T Processor	2.1 GHz	9 MB	6	35 W
Intel® Core? i3-9100 Processor	3.6 GHz	6 MB	4	65 W
Intel® Core? i3-9100E Processor	3.1 GHz	6 MB	4	65 W
Intel® Core? i3-9100TE Processor	2.2 GHz	6 MB	4	35 W
Intel® Core? i3-8100 Processor	3.6 GHz	6 MB	4	65 W
Intel® Core? i3-8100T Processor	3.1 GHz	6 MB	4	35 W
Intel® Pentium® Gold G5400T Processor	3.1 GHz	4 MB	2	35 W
Intel® Celeron® G4900T Processor	2.9 GHz	2 MB	2	35 W
